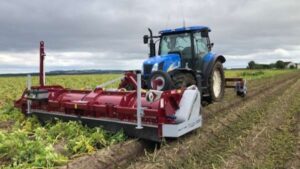

An Overview | Trinity 36B

The Trinity 36B is designed to pulverise 4 x 75cm – 90cm rows in 1.8m wheel tracks.

To overcome the need for an expensive and generally high-maintenance cross conveyor, shear plates have been utilised to give a similar effect as a straw chopper. This in turn finely chops the haulm to the point where the following potato harvester can sieve the debris without the use of haulm rollers. Fitted with a split drive and dual rotors with 2 opposing centre bearings, the working width is 3.6 metres, allowing a greater number of longer flails to be fitted in the outer valley bottoms, which drastically improves suction.

Standard Specification:

• Reduced running costs– competitively priced wearing parts and quick-change flails for reduced downtime.
• Heavy-duty stub axles, wheel bearings, and easy-rolling oversize wheels.
• Greatest range of cutting height due to superior depth wheels.
• Rotors feature heavy-duty 55mm taper lock bearings.
• Greater variation in flail length to allow better flailing in row bottoms and also flat blades across the row top for maximum suction.
• Replaceable stainless steel inner liner for hood protection is unique to the Trinity range of toppers.
• Shear plates to assist in fine chopping of haulm with the choice of single row or full bed width deflectors.
• Adjustable row and bed widths range from 75cm to 90cm (1.8m wheel tracks).
• Choice of input speeds: 540, 750 and 1000rpm.
• Tool box.
• LED lighting.
